Product Details

6 lines High-precision Small Pouch Food Checkweighers Multilane Checkweigher

High-precision 6 Lane multilane checkweigher can be connected to the discharge port of the multi-column packaging machine, check the weight of each long strip of soft package, and remove the underweight or overweight products to the unqualified collection area. Small pouch food multilane checkweigher can detect multi-column weight at the same time, which greatly improves the weighing speed and avoids empty bags, underweight and overweight bags.Welcome to consult us for quotation information.

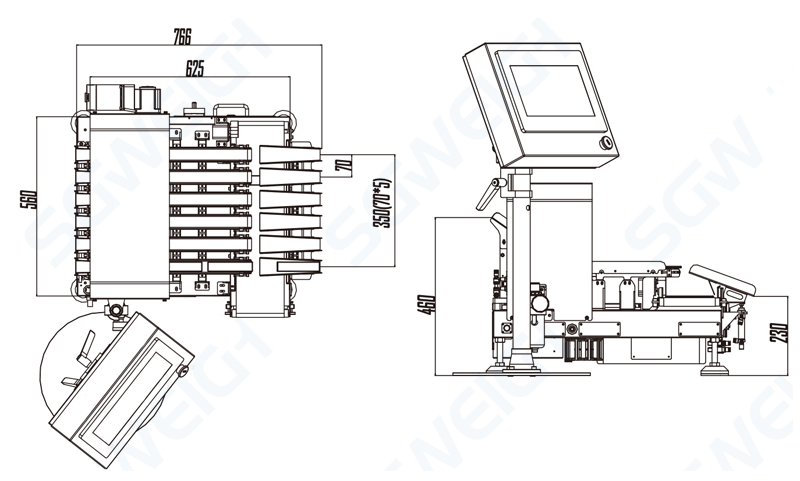

High-precision 6 Lane multilane checkweigher pictures

1:LCD touch screen: The use of color man-machine interface, the whole intelligent, user-friendly design and multi-language support,Simple operation;
2:Emergency stop button for safety working condition;
3:Guide rod : can adjust the direction of the product go through the weighing scale table.
4:Hasp lock design : disassembling without tools, which is easier to clean
5.Reject system choose : automatic reject by air blast,push type or driving lever type and so on .
6.Special materials: Can be achieve reduce vibration ,prevent vibration.
7.Machine foot: Adjustable height.Respond to different users, user feels comfortable, protect the spine.and can be fixed and prevent movement.

Type SG-6X

Weighing Range 1-50g

Limited of product L: 180 W: 40 H: 2-20mm

Accuracy ±0.01g Depends on product

Division Scale  0.01g

Each Channel Speed 70 pcs/min

Belt Width 30mm

Machine Weight 120kg

Power Supply AC 110/220V ±10% 50HZ

Power 400W

Main Material SU304 stainless steel

Different products may require different types of small pouch food multilane checkweigherSs, and our products can be customized according to specific project requirements.

If possible, please provide us with more detailed information about your project, such as materials, weight range, speed, bag size, etc.

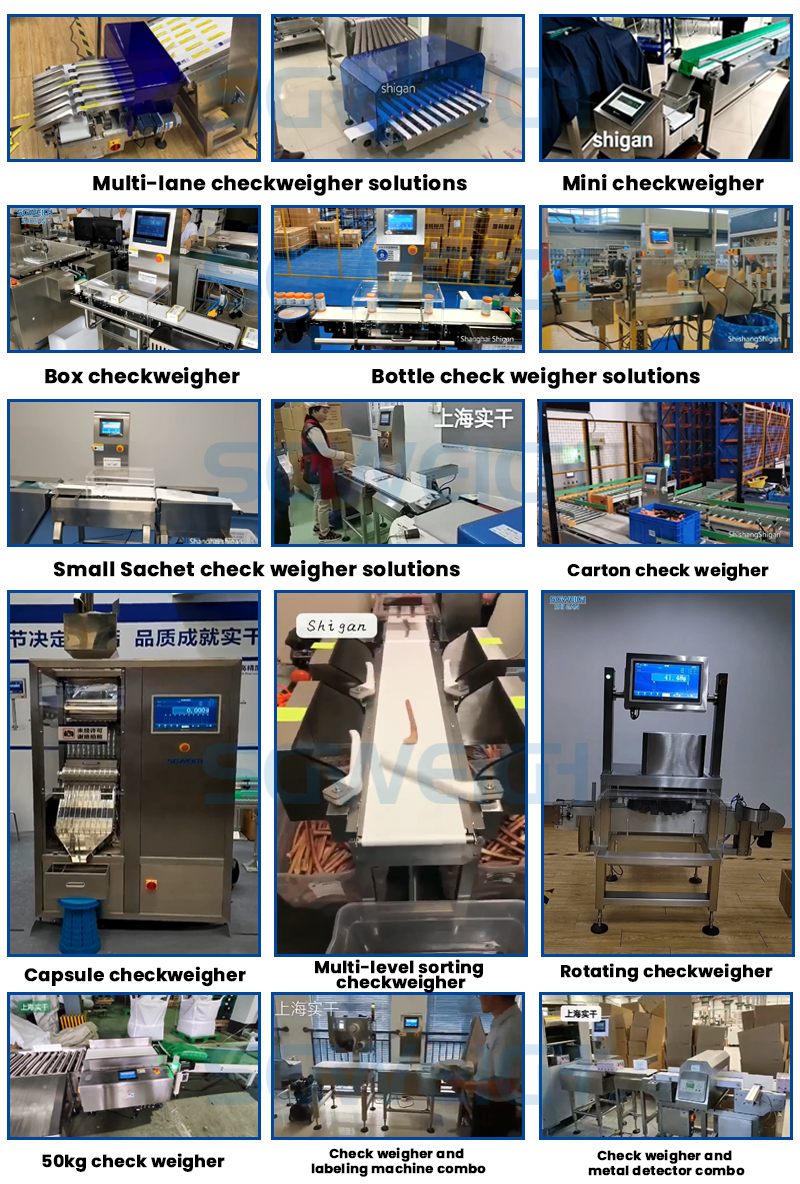

High-precision 6 Lane multilane checkweighers are widely used in food, pharmaceuticals, beverages, health products, daily chemicals, agricultural and sideline products, hardware, toys, electronics, digital, printing and other industries. Such as whether the weight of the whole bag of products is overweight or underweight; whether the whole box of products is lacking in quantity; whether the whole box of products is indeed accessories, etc.

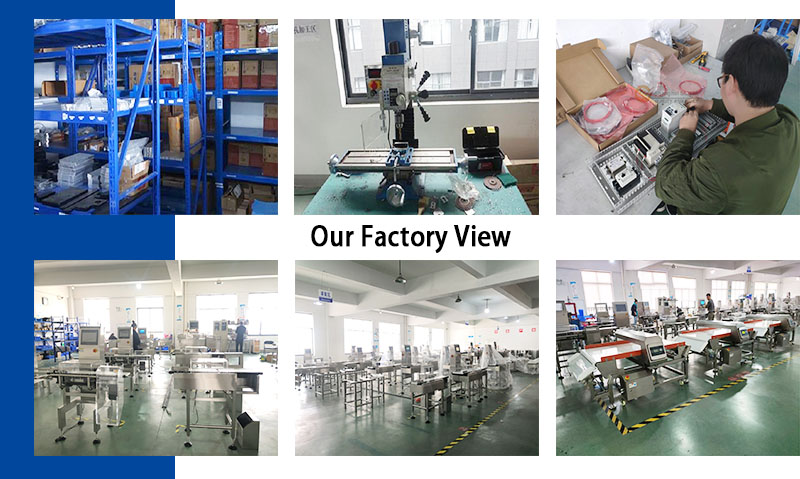

Since 2010, we have our own factory and have provided processing support, design, and manufacturing of automated testing production lines for multiple well-known enterprises. Shanghai Shigan Industrial Co,.Ltd has cultivated a group of excellent technical and management talents through practical work, focusing on the automatic checkweigher industry, constantly innovating, and obtaining multiple patent certificates. We are committed to the research and development of automatic checkweighers, digital metal detectors, weighing labeling machines, and checkweigher with metal detector combo models.

Free export fumigation plywood box with quick connection design, easy to open and reuse;

Internal plastic film packaging can protect goods from salt, wind, or damage;

Pre sale.

1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.

In terms of sales.

We will provide you with the latest developments in product assembly, packaging, and transportation.

After sales service.

1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc
3. One year warranty and lifelong maintenance
