Product Details

SGWEIGH Automatic Capsule Tablet Checkweigher for Pharma Production

This capsule tablet checkweigher for pharma ensures that every capsule and tablet meets strict weight requirements before packaging, rejecting underfilled or overweight products to ensure regulatory compliance, reduce product waste, and safeguard brand reputation. Automatic capsule tablet checkweigher has advanced data tracking capabilities enable real-time reporting and quality assurance, providing the transparency and reliability required for pharmaceutical production. This system combines efficiency, compliance, and durability to deliver long-term performance.

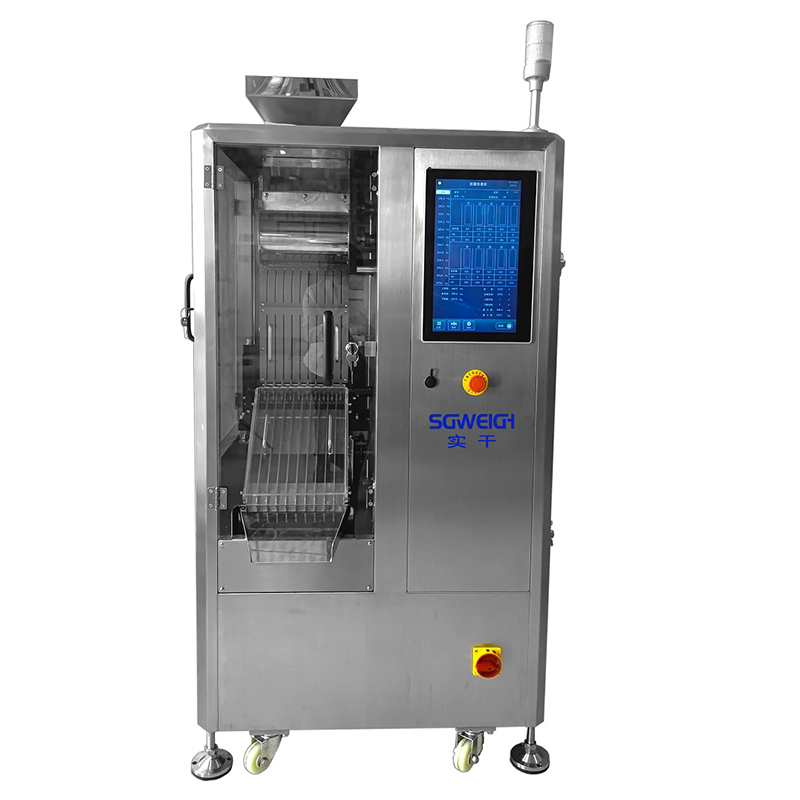

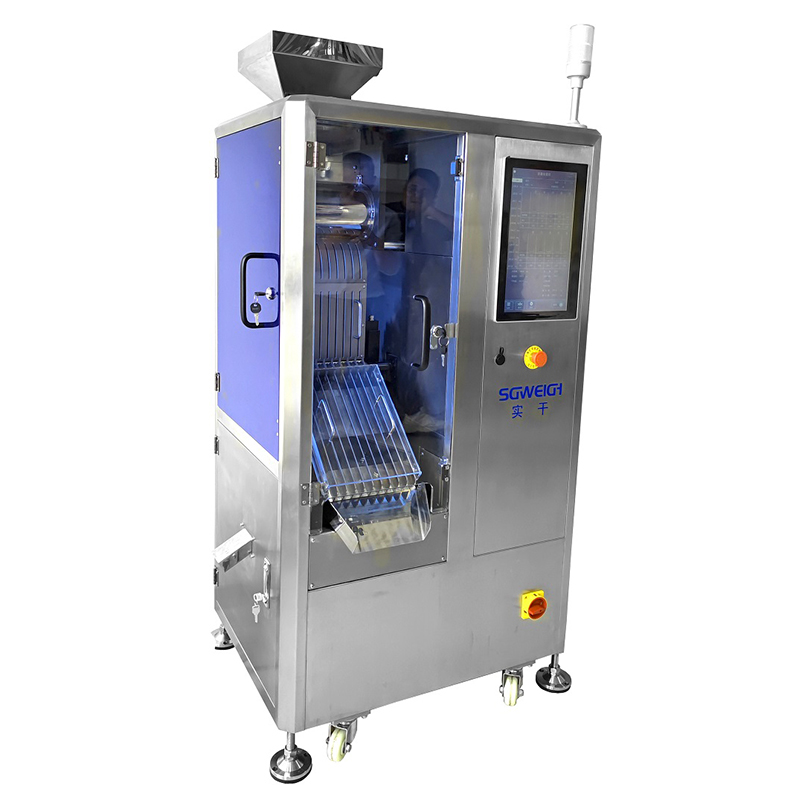

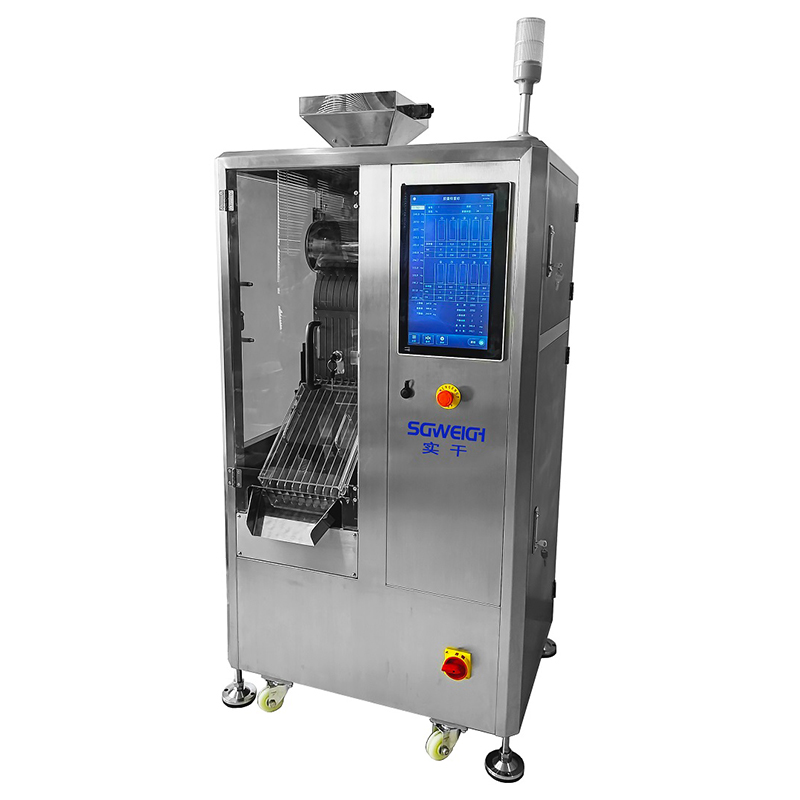

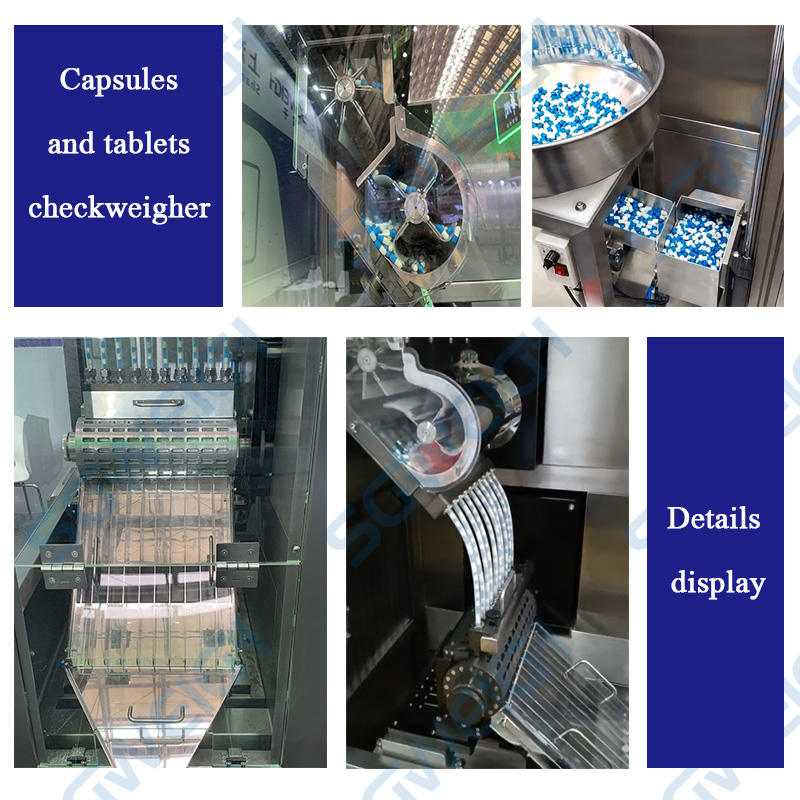

Capsule tablet checkweigher for pharma photos

Type：SG-JN10/SG-JN20/SG-JN30

Weighing scope :5-2000mg

Display scale：0.1mg

Highest sorting accuracy:±0.5mg

Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)

Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR

Number of columns:10 Columns/20 Columns/30 Columns

Power supply:AC-220V±10%, 50HZ

Compressed air:0.3-0.9Mpa

Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)

Weight of Machine :350kg/500kg/700kg

Shell material:SUS304

You can select the best suitable model depending on the production volume.

SGWEIGH Automatic Capsule Tablet Checkweigher for Pharma Production

Capsule tablet checkweigher for pharma can perform online weight detection on capsules and tablets of different shapes and sizes, such as 000 00 0 1 2 3 4 5 SA, SB and other types of capsules, as well as conventional tablets;

1. Precision and Accuracy: Capsule tablet checkweigher for pharma are designed to weigh each capsule with high accuracy and precision, typically within tight tolerances of ±0.1 mg.

2. High-Speed ​​Operation: These capsule tablet checkweigher can operate at very high speeds, weighing up to 75,000 capsules per hour (10 lanes). This makes them ideal for large-scale production environments where throughput is critical.

3. Automatic Rejection System: Capsules or tablets that are underweight, overweight, or out of specification are automatically removed from the production line using a reject mechanism.

4. Integration with Packaging Lines: Capsule tablet checkweigher for pharmas are often integrated with other systems in the production process, such as capsule filling machines and tablet presses.

5. Touchscreen Interface: Automatic capsule tablet checkweighers feature a user-friendly touchscreen interface, allowing operators to adjust settings like weight tolerances and speed without extensive training.

6. Real-Time Monitoring and Data Logging: Automatic capsule tablet checkweighers can be connected to networked systems for real-time monitoring and data logging to comply with regulatory standards such as FDA and GMP.

6. Flexible adaptation to capsules of different sizes: By adjusting the weighing mechanism or using various conveying systems, the pharma capsule tablet checkweigher can be configured to handle capsules of different sizes, from small gel capsules to large tablets.

Capsule tablet checkweigher for pharma is critical inspection equipment on production lines and are used in diverse applications. If your product specifications do not meet your requirements, please contact us via inquiry or chat with us to discuss your customization needs. We can also provide a live demonstration of our factory and machines. Our team will customize a capsule tablet checkweigher solution for you.

SGWEIGH Automatic Capsule Tablet Checkweigher for Pharma Production

Inner packaging is plastic film, and the exterior is a wooden or plywood box.

External packaging is plastic film only, with a plastic pallet.

We can provide fumigation packaging and certification.

Shipping options include delivery by train, express delivery, or upon request.

1. Are you a trading company or a factory?

We are a factory + trading (integrated), with 16 years of experience specializing in pharma capsule tablet checkweigher instruments and exporting. We also accept OEM orders.

2. How do I choose the most suitable product?

Simply tell us which test you require and the specifications you require, and our professional team will provide you with the best advice.

3. What is the delivery time?

Most of the time, we have the product in stock. If not, the delivery time is usually 15-20 business days after receiving the deposit. If your request is urgent, we can consider making special arrangements.

4. Do you offer customized services?

Yes, of course. We can not only provide standard machines, but also customize them according to your requirements. Don't hesitate to tell us your requirements, and we will do our best to meet your needs.

5. Can we visit your factory before ordering?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory. We will assist with hotel arrangements and pick you up at the airport.

6. What is your warranty period?

Our warranty period is 1 year, with lifetime maintenance.
