Tablet Capsule Drop Feed Metal Detector 0.3mm High Sensitivity Detector

The digital tablet capsule metal detector uses dual-circuit electromagnetic wave detection, a new combination of analog circuits and digital circuits, which improves the sensitivity and reliability of detection. The new software algorithm and large-scale integrated circuits improve the intelligence of detection. The high sensitivity tablet capsule metal detector uses multi-frequency scanning, with a wide range of adjustable sensitivity. When metal is detected, sound and light alarms are sounded simultaneously, and the machine stops or rejects unqualified products (multiple rejection methods are optional). Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

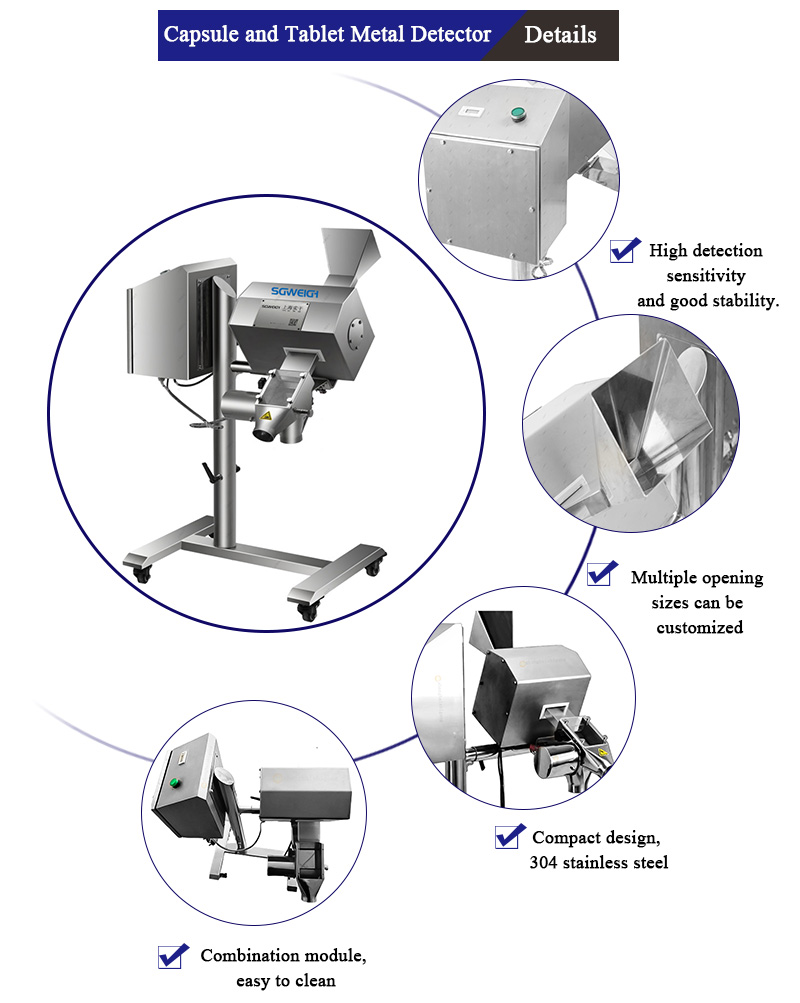

Tablet capsule metal detector photos

Tablet Capsule Drop Feed Metal Detector 0.3mm High Sensitivity Detector

Type: SG-YJ60

Inter Height: H 770-930mm; Port size: φ76mm

Outer Height: H 770-860mm; Port size: φ51mm

Effective passing size: W70*H20mm

Output Capacity: 50w pcs/h

Detection sensitivity: φ Fe 0.4mm;φ SUS 0.6mm

Deadweight of machine: 75kg

Rejection Way: Flip Culling

Working powder supply: 220v/110v, 50/60Hz

Dimension: 1115*550*(1280-1440)mm

1. The system adopts a variety of the latest technologies in the industry, and is equipped with a hardware solution that combines high-speed DSP, high-performance FPGA and 32-bit microcontroller, making the performance of the whole machine more outstanding;
2. High sensitivity tablet capsule metal detector adopts Shigan's unique metal foreign body detection method, and multiple detection algorithms run simultaneously, with high detection accuracy, good reliability and strong anti-interference ability;
3. High sensitivity tablet capsule metal detector has a wide range of applications, and can detect dry, wet and high-salt products, and can achieve good detection results;
4. Simple structural design, the whole machine is made of stainless steel (SUS304), with thick materials, firm structure, rust-proof, corrosion-resistant and easy to clean;
5. Fully sealed design, protection level reaches IP66, dustproof and waterproof.

Tablet Capsule Drop Feed Metal Detector 0.3mm High Sensitivity Detector

The models on display are customized models and may not meet your requirements. The above parameters are for reference only. Shanghai Shigan has more than 15 years of experience in high sensitivity tablet capsule metal detector manufacturing and can provide multiple sets of digital metal detector solutions free of charge according to your actual needs!

Packaging

Film pack inside, Wooden case outside

Shipping

1. Upon receipt of payment, delivery date will be in 20-30 working days
2. By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)

1. We will deliver the machine and provide the load list on time to ensure you can get the machine quickly
2. We often ask for feedback and provide assistance to customers whose machines have been used in their factories for a period of time.
3.. We provide one-year warranty
4. Well-trained and experienced staff will answer all your inquiries in English and Chinese
5. 12-month warranty and lifetime technical support.
6. Your business relationship with us will be kept confidential to any third party.
7. Provide good after-sales service, if you have any questions, please contact us.
