This stainless steel food metal detector is designed for precision and reliability, capable of detecting even the smallest traces of ferrous, non-ferrous, and stainless steel contaminants in both packaged and unpackaged products. Constructed from food-grade stainless steel, this food conveyor belt metal detector is designed to withstand harsh production environments.
Stainless Steel Food Metal Detector with Auto Reject Conveyor Belt Metal Detector
This stainless steel food metal detector is designed for precision and reliability, capable of detecting even the smallest traces of ferrous, non-ferrous, and stainless steel contaminants in both packaged and unpackaged products. Constructed from food-grade stainless steel, this food conveyor belt metal detector is designed to withstand harsh production environments. Its IP65 waterproof construction ensures durable performance and hygiene compliance, maintaining stable operation even under stringent cleaning conditions. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us for a quote.

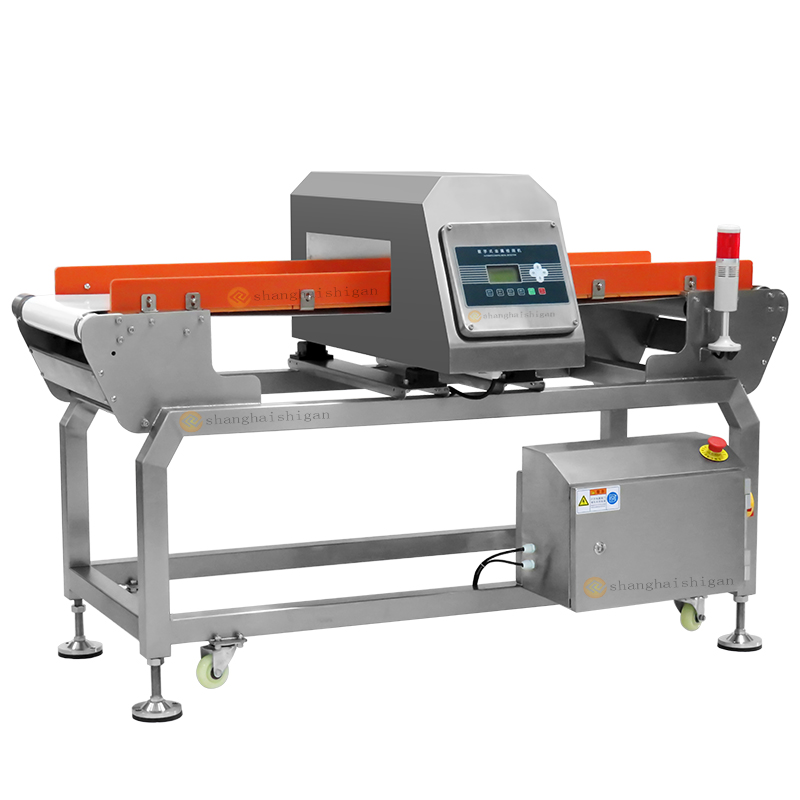

Stainless steel food metal detector pictures
Model: SG-M70
Inlet Height: Height：770-930mm Port size：Φ76mm
Outlet Height: Height：700-860mm Port size：Φ51mm
Dimension: 750*550*950mm
Output Capacity(pcs/h): 500 000pcs/hour
Metal detector sensitivity in empty state: ΦFe≥0.3mm 、ΦSUS≥0.5mm
Weight: 65kg
Power supply: 220V/50Hz
1. Employs a balanced principle for higher reliability.
2. Phase adaptive technology adapts to different products, effectively eliminating product effects.
3. Combines DSP and microprocessor to process test data, improving testing efficiency.
4. The instrument handles multiple operations to prevent transmission and reception errors. Parameter adjustment is convenient.
5. Large LCD screen with multiple language options including Chinese and English, selectable by the user.
6. Features a self-learning function, automatically learning and storing product characteristics. Simple operation, requiring no manual adjustment of technical parameters.
7. Can store test data for over 100 products.
8. Automatic rejection system improves production efficiency and saves labor costs.
Stainless Steel Food Metal Detector with Auto Reject Conveyor Belt Metal Detector
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
Stainless Steel Food Metal Detector with Auto Reject Conveyor Belt Metal Detector
1. Waterproof PO film + wooden crate
1) Dust removal and cleaning
2) Lubrication of transmission components
3) Disassemble the machine into modules
4) Wrap the modules with plastic film
5) Pack the modules into plywood crates
6) Mark the boxes with shipping marks.
2. Packaging according to customer requirements.
1. Equipment Installation and Commissioning: The company provides detailed operation manuals and free operation training to ensure customers can master the use of the equipment.
2. Technical Support: The company provides 24/7 technical support to solve problems encountered by customers during use.
3. Spare Parts Supply: The company provides original factory parts, ensuring the quality and stability of the parts.
4. Quality Assurance: The company is responsible for the products sold, ensuring that the quality and performance of the equipment meet industry standards.
5. Warranty Policy: One-year warranty, lifetime maintenance, eliminating any worries for customers.
