Soft Gel Capsules Tablets Metal Detector with High Accuracy Detection

The digital soft gel capsules tablets metal detector is designed to detect and remove minute ferrous, non-ferrous and stainless steel contaminants from pharmaceutical tablets. The capsules tablets metal detector with high accuracy chute can be quickly and easily removed for routine cleaning and product changeovers. The system meets the hygienic requirements of the pharmaceutical industry and can be combined with all high-performance tablet presses with dust extraction.

E-mail :shigan7@checkweigher-sg.com

Product Details

Soft Gel Capsules Tablets Metal Detector with High Accuracy Detection

The digital soft gel capsules tablets metal detector is designed to detect and remove minute ferrous, non-ferrous and stainless steel contaminants from pharmaceutical tablets. The capsules tablets metal detector with high accuracy chute can be quickly and easily removed for routine cleaning and product changeovers. The system meets the hygienic requirements of the pharmaceutical industry and can be combined with all high-performance tablet presses with dust extraction. Flexible operating heights, angles and frames, with lockable castors, allow for easy integration into any production facility. You are welcome to contact us at any time for quotation.

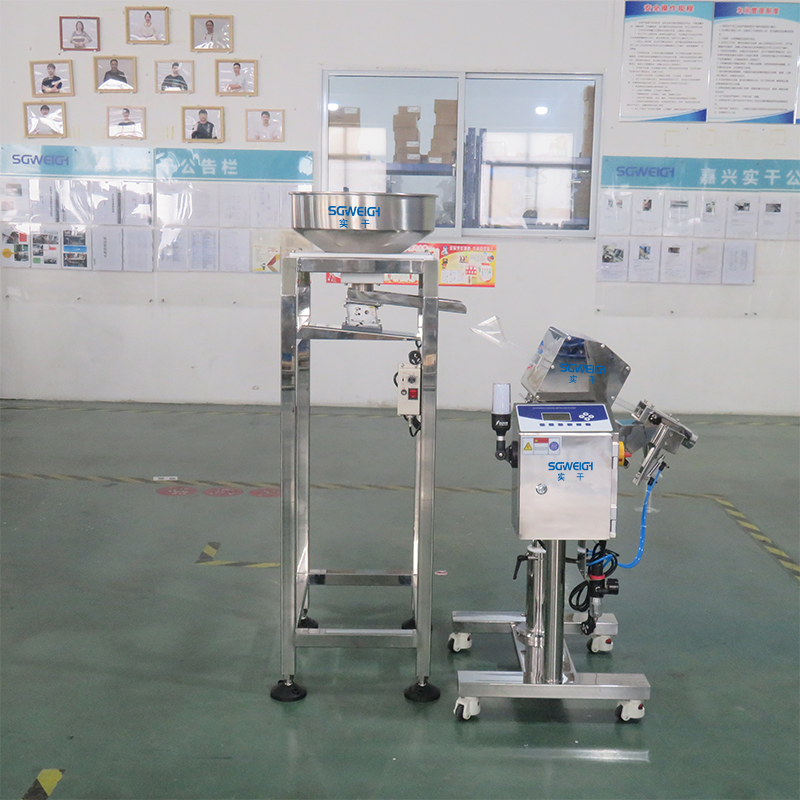

Digital soft gel capsules tablets metal detector pictures

Soft Gel Capsules Tablets Metal Detector

1. The processing speed can reach about 15,000 tablets per minute
2. Digital soft gel capsules tablets metal detector can handle various types of drugs. In order to save space, a more compact frame design is adopted
3. The automatic sorting device uses food-grade PVC material;
4. The detection sensitivity is higher than the industry standard, and the maximum detection of metal balls with a diameter greater than 0.3mm can be detected;
5. The sensitivity can be adjusted according to the characteristics of the product, and the number of detections and eliminations can be recorded in real time; manual records are clear
6. All stainless steel structure, waterproof, shock-resistant, strong adaptability to environmental and temperature changes, easy to clean;
7. Modular component replacement, easy maintenance
8. Multi-language function selection (Chinese, English, Korean, Japanese, etc., other languages can be customized according to needs);

Model: SG-M50

Feed port height and size: Height: 770-930mm Feed port size: 76mm

Height and size of outlet: Height: 770-860mm Size of outlet: 51mm

Effective passing size: W70*H20mm

Maximum production capacity: 500,000 pcs/hour

Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm

Machine weight: 75kg

Removal method: flip culling

Working voltage: 220V/110V, 50/60HZ

Equipment dimensions: 1115*550 (1280-1400) mm

Soft Gel Capsules Tablets Metal Detector with High Accuracy Detection

1. Tablet production: Used during tablet compression to detect metal contaminants before tablet packaging to ensure product safety and quality.
2. Capsule inspection: Ensure that there are no metal contaminants in capsules after they are encapsulated but before final packaging.
3. Powdered medicines: Metal detectors can also be used on powder filling lines to check for contaminants in powdered medicines before tableting or encapsulation.
4. Final product inspection: After tablets or capsules are bottled or packaged, metal detectors are used to inspect the final product to ensure that no metal contaminants were introduced during the packaging process.

Shanghai Shigan can tailor a digital soft gel capsules tablets metal detector for customers based on their needs and specific scenarios. Meet customers' personalized needs in terms of functionality, performance, appearance, etc.

Soft Gel Capsules Tablets Metal Detector with High Accuracy Detection

The food automatic metal detector is a device that uses export standard wooden boxes (fumigation-free) for packaging. We can accept FOB, CFR, CIF terms, and our professional logistics team can handle sea, air, and rail transportation.

Consultation and Assessment: Understand your requirements, production processes and quality control goals to determine the best checkweigher solution for your specific needs.

Product Demonstration: Get a visual understanding of the equipment in action and directly assess its performance.

Installation and Commissioning: After purchase, the checkweigher is installed and commissioned by trained technicians to ensure it operates correctly and integrates seamlessly into your production line.

Technical Support: Ongoing technical support is provided to resolve any questions, issues or maintenance needs that arise during the operation of the checkweigher.
Warranty Coverage: 1-year warranty, lifetime repairs.
We aim to provide our customers with the right solutions, support and peace of mind throughout the lifecycle of the equipment, ensuring that the checkweigher meets your needs and provides long-term value.
