Pharma Bottle Checkweigher with Turntable Weighing High-Speed Rotary Weight Checker

This pharma bottle checkweigher with turntable weighing utilizes a precision weighing platform and rotating turntable design to ensure stable, consistent, and verified weighing of each bottle. The integrated, smooth, and controllable rotary feeding mechanism of high-speed pharma bottle rotary checkweigher optimizes product spacing, improves weighing consistency, and enhances operational efficiency. The turntable feeding eliminates bottlenecks, prevents bottle tipping, and stabilizes the bottles' movement before they enter the weighing conveyor.

E-mail :shigan7@checkweigher-sg.com

Product Details

Pharma Bottle Checkweigher with Turntable Weighing High-Speed Rotary Weight Checker

This pharma bottle checkweigher with turntable weighing utilizes a precision weighing platform and rotating turntable design to ensure stable, consistent, and verified weighing of each bottle. The integrated, smooth, and controllable rotary feeding mechanism of high-speed pharma bottle rotary checkweigher optimizes product spacing, improves weighing consistency, and enhances operational efficiency. The turntable feeding eliminates bottlenecks, prevents bottle tipping, and stabilizes the bottles' movement before they enter the weighing conveyor. You are welcome to contact us at any time for quotation.

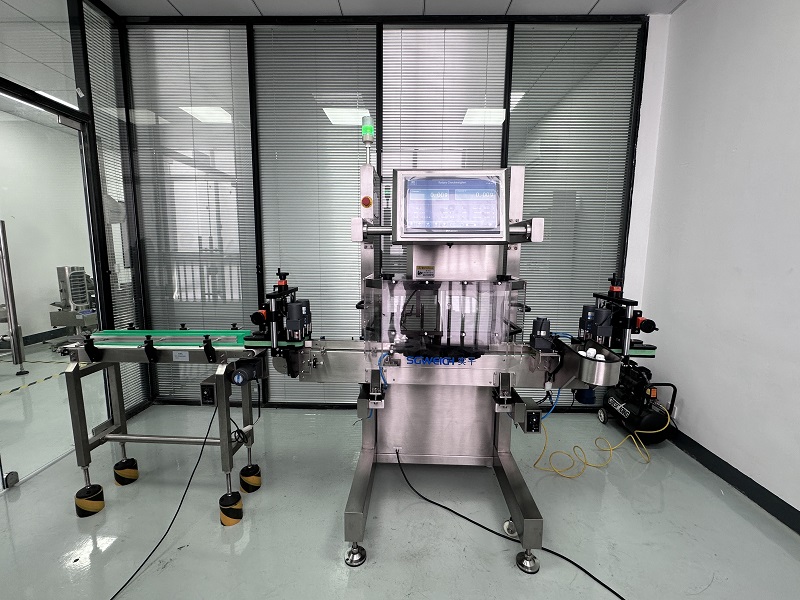

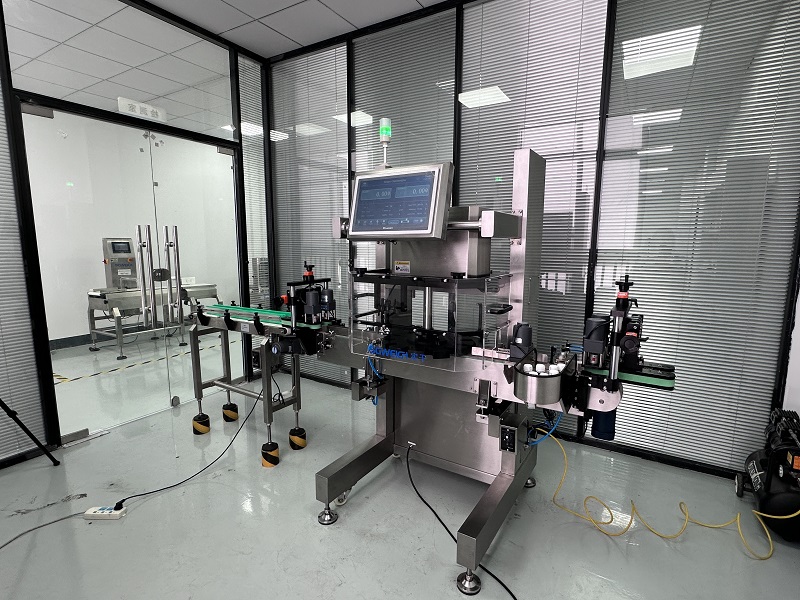

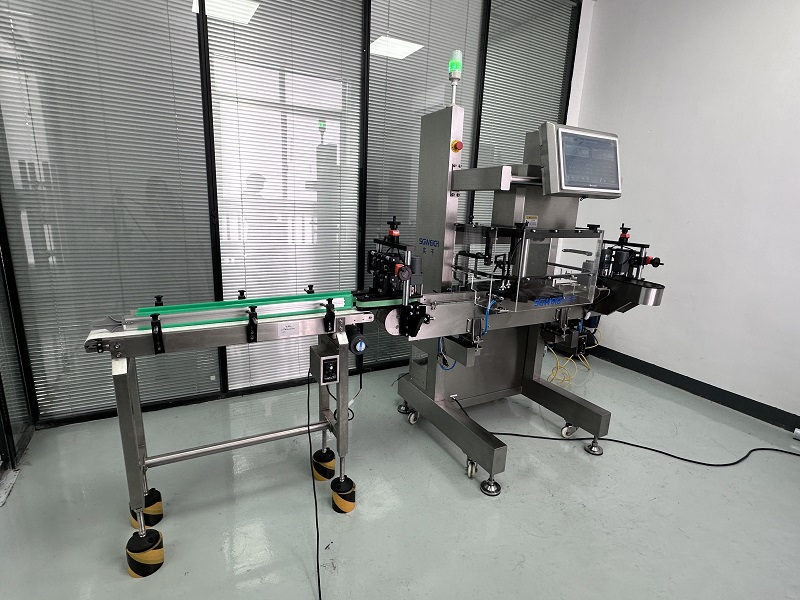

Pharma bottle checkweigher with turntable weighing photos

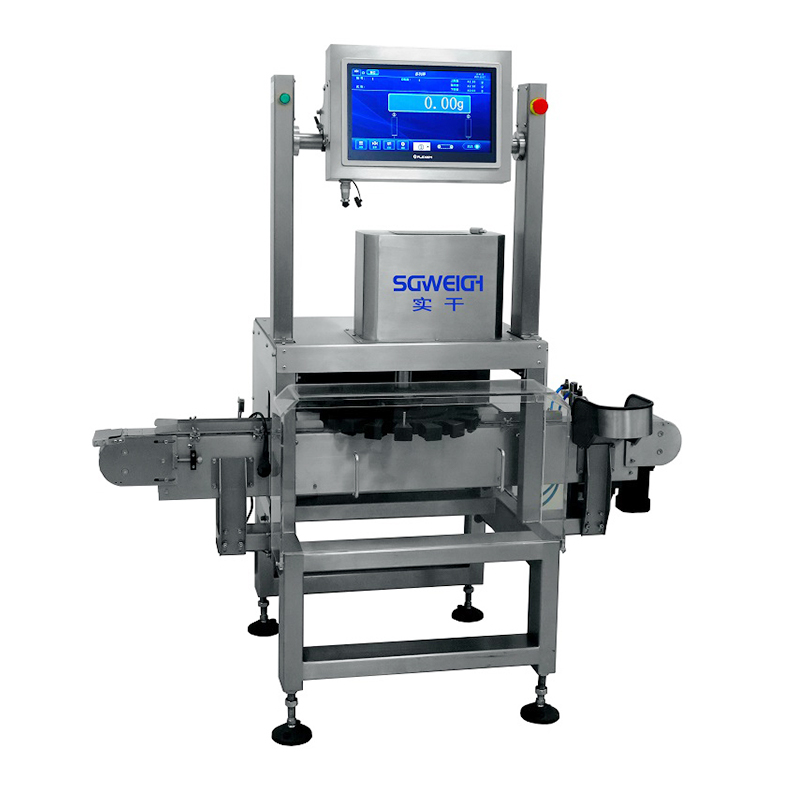

Pharma Bottle Checkweigher with Turntable Weighing Pharma Bottle High-Speed Rotary Weight Checker Pharma Bottle Rotary Checkweigher

1. Rotary Weighing Mechanism: Enables continuous weighing, maximizing throughput.

2. High-Speed Performance: Maintains stable and accurate weighing even when weighing thousands of bottles per hour.

3. Advanced Weighing Sensor Technology: Ensures accurate measurement of bottles of all sizes and materials.

4. User-Friendly Interface: Touchscreen control panel for easy operation, calibration, and data access.

5. Automatic Rejection System: Efficiently rejects underweight or overweight bottles, ensuring product integrity.

6. Flexible Integration: Compatible with filling, labeling, and packaging equipment, enabling automation of the entire production line.

Model: SG-Z1
Weighing Range: 5-300g
Minimum Graduation: 0.01g
Sorting Speed: Maximum 50 pieces/minute (single channel)
Conveyor Speed: 20-100m/min
Operation Method: Touchscreen Operation
Conveyor Direction: From left to right when facing the touchscreen
Rejection Method: Air blow rejection/Push plate rejection
Belt Height from Ground: 750±50mm (customizable upon request)
Machine Structure: Stainless Steel (SUS304)
Power Supply: 220V 50-60HZ
Power Consumption: Approx. 300W
Wind Protector: Thick acrylic (to prevent airflow interference)
Operating Environment: Temperature: 0℃～40℃, Humidity: 30%～95%
Note: The detection speed and accuracy will vary depending on the properties of the products being tested and the operating environment. Actual testing shall prevail.

Pharma bottle checkweigher with turntable weighing is widely used for online weighing of bottled products. Please leave your specific requirements and we will customize a machine for you.

Pharma Bottle Checkweigher with Turntable Weighing High-Speed Rotary Weight Checker

This high speed bottle rotary checkweigher solution is suitable for syrup bottles, tablets, capsules, nutritional supplements, and liquid formulations, providing reliable weight control.

Pharma Bottle Checkweigher with Turntable Weighing High-Speed Rotary Weight Checker

Machine packing :

Non-fumigation wooden case for export standard and comply with customs clearance requirement

Lead time :

10-15 days after payment received

Price term :

FOB term, CIF/CFR term(sea/air), DDU/DDP term( sea/air)

Negotiable payment term: T/T , LC, D/P ,D/A .,etc

1. We will deliver the machine and provide a load list on time to ensure you get the machine quickly.

2. We frequently ask for feedback and assist customers who have used our machines in their factories for a period of time.

3. We offer a one-year warranty.

4. Well-trained and experienced staff will answer all your inquiries in English and Chinese.

5. 12-month warranty and lifetime technical support.

6. Your business relationship with us will be kept confidential from any third party.

7. We provide excellent after-sales service; please contact us if you have any questions.
