Super precision capsule tablet checkweigher is a device that can achieve high-speed and high-precision weighing under online and dynamic conditions, and automatically sort out products that are too light or too heavy. The automatic capsule tablet checkweigher adopts a special data acquisition board combined with a touch screen, which not only ensures high-speed data acquisition and processing, but also ensures the flexibility and convenience of PLC system control, thus providing customers with a more humane solution that is closer to production needs.
Intelligent Super Precision Capsule Tablet Checkweigher SHIGAN
Super precision capsule tablet checkweigher is a device that can achieve high-speed and high-precision weighing under online and dynamic conditions, and automatically sort out products that are too light or too heavy. The automatic capsule tablet checkweigher adopts a special data acquisition board combined with a touch screen, which not only ensures high-speed data acquisition and processing, but also ensures the flexibility and convenience of PLC system control, thus providing customers with a more humane solution that is closer to production needs. If there is any need, please contact us at any time.

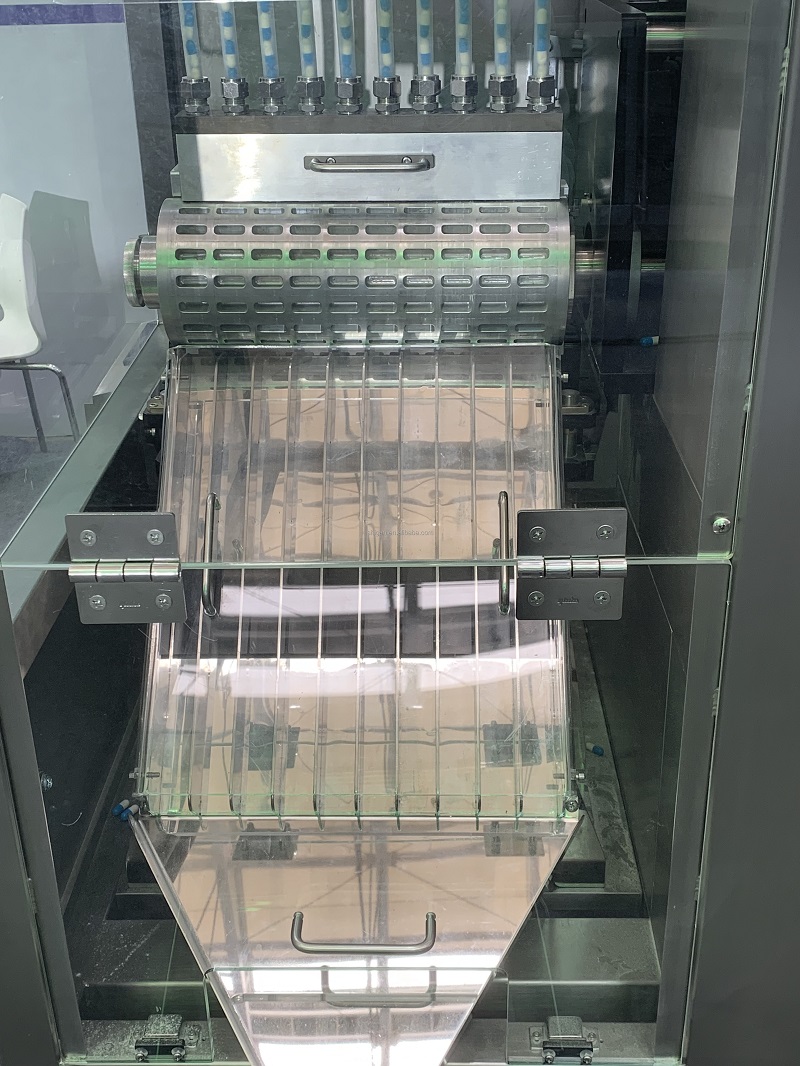

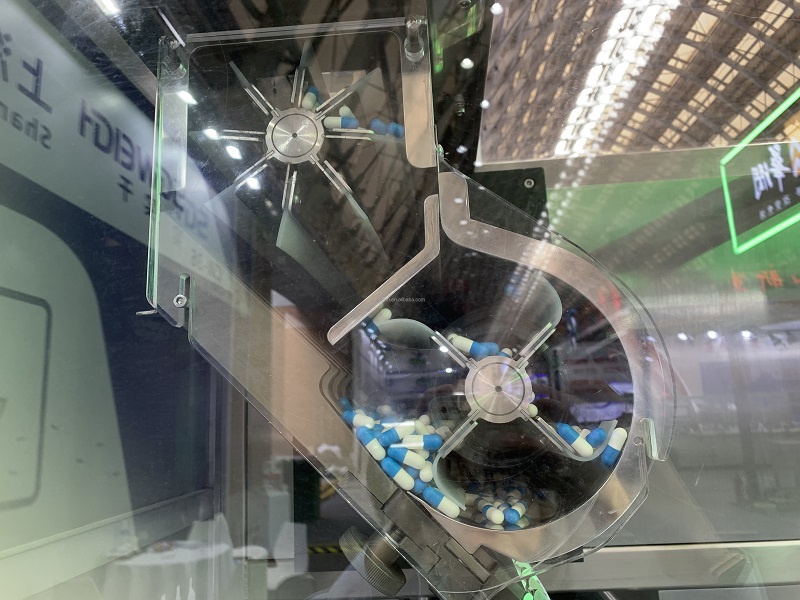

Super precision capsule tablet checkweigher photos
Type SG-JN20
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 15W pcs/HR
Number of columns: 20
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:500kg
Shell Material:SUS304 Stainless Steel
1. Large screen display, clear and easy to understand, easy to operate.
2. Chinese and English interface (customizable in multiple languages).
3. Suitable for ordinary capsules and tablets.
4. Can truly display the relevant data of each channel.
5. Three-level operation authority management, support self-set password.
6. Can store 100 types of data, powerful data statistics function.
7. All channels can be cleaned without disassembly.
8. Multi-channel delivery of products to improve production efficiency (number of channels can be customized).
Intelligent Super Precision Capsule Tablet Checkweigher SHIGAN
Intelligent Super Precision Capsule Tablet Checkweigher SHIGAN
In the application of super precision capsule tablet checkweighers, Shanghai Shigan provides the following customized services to users in various industries:
1) Help users choose the checkweigher model that suits the current status of the production line;
2) Customize weight detection or quality abnormality solutions for users;
3) Design economical and practical online checkweigher solutions for users;
4) Customize the front-end and back-end connection auxiliary mechanisms of assembly line weight detection equipment for users;
5) Provide users with consulting and training services for super precision capsule tablet checkweighers.
1> Attach safety labels, tighten screws, clean, lubricate, and prevent rust;
2> Disassemble into packages;
3> Wrap tightly with plastic film;
4> Secure in plywood box
5> Forklift into container
Suitable for long-distance land and sea transportation. In order to safely load and unload at the destination, we recommend that you choose full container transportation.
1.Replacement within seven days, warranty within one year, and lifetime maintenance. Before the products are sold, we will go through strict inspection, and the products you sign for have no quality problems;
2.The products provided to customers are all produced by the original factory, and have factory data accessories;
3.During the warranty period, our company will repair the damaged parts due to quality reasons, and the damage of the parts outside the warranty period. The provided accessories only charge the cost. If the equipment is damaged due to human factors, the parts repaired or provided by our company are calculated at the cost.
