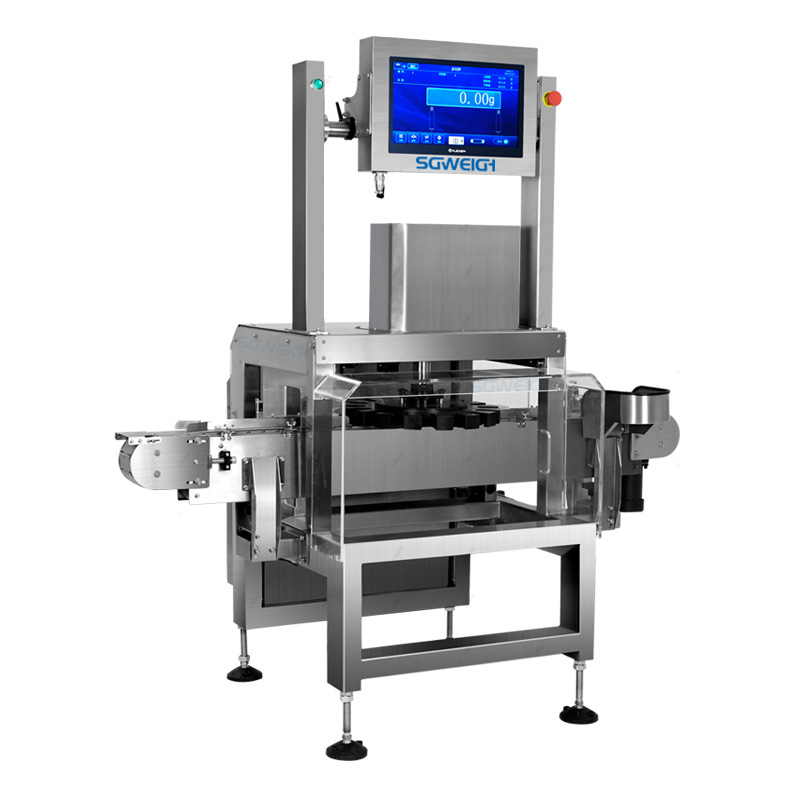

High Precision Checkweigher Small Bottle Rotary Weighing Check Weigher

The bottle rotary weighing checkweigher is designed for a fully automatic packaging line. When overweight or ultra light products are found, the conveyor belt will automatically remove them and give an alarm, and the screen will display the weight. By incorporating high-precision bottle checkweigher in the production line, the quality of your product can be improved without reducing efficiency.

E-mail :shigan7@checkweigher-sg.com

Product Details

High Precision Checkweigher Small Bottle Rotary Weighing Check Weigher

The bottle rotary weighing checkweigher is designed for a fully automatic packaging line. When overweight or ultra light products are found, the conveyor belt will automatically remove them and give an alarm, and the screen will display the weight. By incorporating high-precision bottle checkweigher in the production line, the quality of your product can be improved without reducing efficiency. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

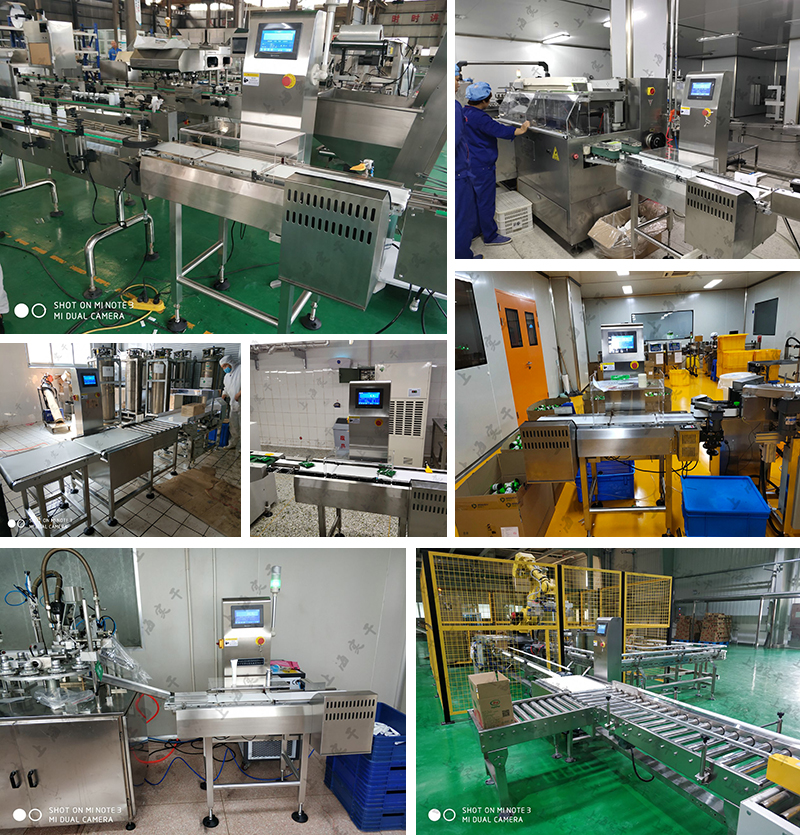

Bottle rotary weighing checkweigher pictures

Small Bottle Rotary Weighing Check Weigher High Precision Bottle Rotary Checkweigher High Precision Checkweigher for Small Bottle

1. Accuracy

Imported high-speed weighing modules and weight sensors can be used to ensure the accuracy of calibration.

2. Structure

Simple and compliant with GMP and HACCP standards, all made of stainless steel, with a simple structure and easy maintenance and upkeep.

3. Convenient operation

Adopting Schneider touch screen, easy to operate, intuitive display, support for multiple languages (default Chinese and English).

4. Convenient external connection

Bottle dynamic checkweigher can be connected to other devices in the production line, such as printers, labeling machines, and inkjet printers (customized by customers).

5. Wide application

Suitable for checking the weight of packaging bags and filling packaging, there are multiple removal methods to choose from (pull, blow, push can, etc.).

6. Automatic feedback function

Provide signals to the front-end and provide timely feedback on packaging accuracy to adjust the feeding status of the connected equipment.

Type SG-150H

Weighing Range 3-500g

Limited of product L: 100 W:150 H: 3-150mm

Accuracy ±0.1g Depends on product

Division Scale 0.1g

Belt Speed 0- 90 m/min

Max Speed 160 pcs/min

Belt Width 150mm

Machine Weight 60kg

Power Supply AC 110/220V ±10% 50HZ

Power 100W

Main Material SU304 stainless steel

Provide the following information to our sales personnel, and our team will support you in selecting the correct type of bottle dynamic checkweigher:

*1. Main parameters of the tested product, product size range: length, width, height

*2. Accuracy requirement: ± g.

*3. Speed requirement: pcs/min;

*4. Product weight range:; The maximum and minimum deviations of the same product.

The bottle dynamic checkweigher is suitable for standard weight testing of single products and samples on the assembly line, online weight grouping and sorting of single products, missing packaging in product attachment instructions, missing bottles in the entire box of products, weight testing of empty bottle packaging, and other situations. High-precision bottle rotary weighing checkweigher has been widely used in various industries and fields such as food, chemical, logistics, aviation, medicine, papermaking, building materials, batteries, etc.
