Product Details

Custom Conveyor Belt Industrial Metal Detector Carton Metal Detector Price

The conveyor belt industrial metal detector adopts advanced balanced principle and phase adjustment technology, which can adjust the product more stably and reliably, with better performance and effectively suppress product effect. The digital carton metal detector is equipped with DSP and single-chip microcomputer to sample and process the detection signal, which improves the detection effect and can detect various materials such as iron, stainless steel, copper, aluminum and other non-ferrous metals with high sensitivity. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

Conveyor belt industrial metal detector photos

Machine Grade：Food Grade

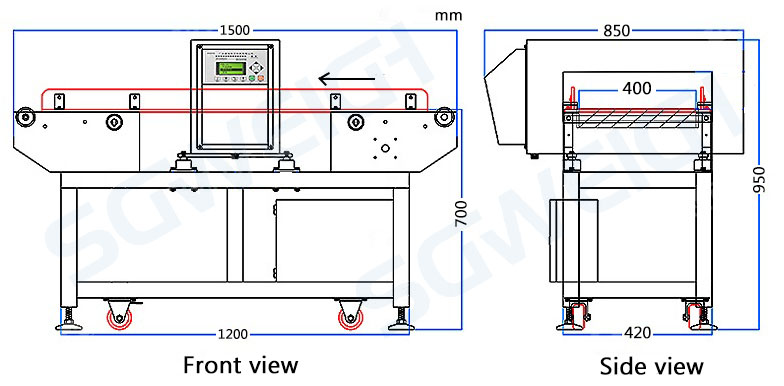

Detecting width：400, 500 mm (can be customized)

Detecting height：80, 100, 120, 150, 200, 250, 300, 350 mm (can be customized)

Detecting sensitivity：Fe 0.8mm-3.0mm, Non-Fe 1.2mm- 4.0mm；Stainless Steel 1.5mm- 5.0mm

Display Screen： 7inch (optional)

Sensitivity adjustment：100 level adjustment

Detecting adjustment： Intelligent adjustable

Belt Speed：20m /min (or specified)

Alarm mode：The buzzer alarm, the motor automatically stop

Power：AC22V,50Hz (Or Customized)

1.Core technology

Adopts DDS frequency synthesis, DSP digital signal processing, high-efficiency power amplifier and other advanced technologies, industry technology

2.Super hardware configuration

Adopts dual high-speed digital signal processor design, with extremely high detection accuracy and high-speed processing speed

3.Product effect suppression

Adopts multi-frequency design, intelligent self-learning, three-dimensional detection algorithm and other advanced technologies to effectively suppress product effects

4.Easy and intelligent operation

Adopts wide LCD and wizard interface, users can quickly and easily set and operate

5.Data is safe and reliable

Adopts secondary user security management mode and FRAM security storage technology to ensure system parameters and data security

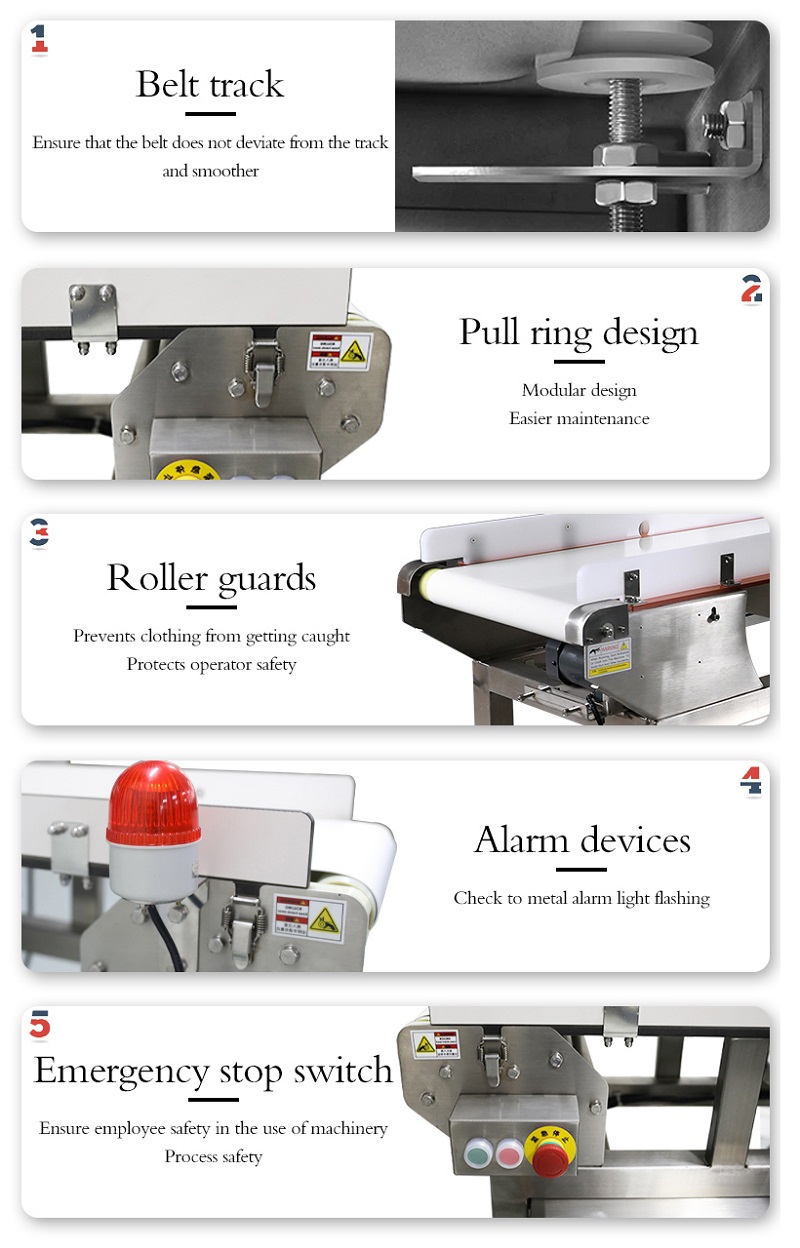

6.Good mechanical manufacturing process

Adopts all stainless steel probes and racks, with a variety of protection levels for customers to choose, suitable for various production environments

7.Conveyor belt anti-deviation design

Adopts a special conveyor belt anti-deviation design to effectively avoid conveyor belt deviation

1. Flexible digital metal detector solutions
Customized according to specific requirements based on production line space, speed, detection accuracy, and impact on materials.

2. Rich peripheral interfaces

Configurable RS-485 data communication, PLC programming nodes, printer output, can provide real-time data for production management system for remote control, analysis and monitoring, and provide valuable traceability information

3.Efficient rejection device

Equipped with rejection devices such as arm-type, air-blowing type, flap type, lifting belt type, etc.

Custom Conveyor Belt Industrial Metal Detector Carton Metal Detector Price

Conveyor belt industrial metal detectors have a wide range of uses and can be used in multiple industries and fields, such as the food industry, pharmaceutical industry, cosmetics industry, plastic and rubber industry, textile industry and other industries to detect metal fragments or impurities in raw materials, semi-finished products and finished products to prevent metal contamination from posing a threat to food safety.

Custom Conveyor Belt Industrial Metal Detector Carton Metal Detector Price

Inner packing is plastic film, outer is wooden or plywood box
Only bare packing with plastic film with plastic pallet.
We can provide fumigation packing and certificate.
Shipping, train, express or as per customer's requirement.
Port: Shanghai

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* One year warranty, lifetime repair
