Home / Product / Automatic Metal Detector for Bagged Food Lines Digital Conveyor Metal Detector

Automatic Metal Detector for Bagged Food Lines Digital Conveyor Metal Detector

This automatic metal detector for bagged food lines features advanced digital detection technology, maintaining superior accuracy even when handling complex products. Its intelligent detection system identifies minute metal contaminants while minimizing false rejects, thereby maximizing production efficiency.

E-mail :shigan7@checkweigher-sg.com

Product Details

Automatic Metal Detector for Bagged Food Lines Digital Conveyor Metal Detector

This automatic metal detector for bagged food lines features advanced digital detection technology, maintaining superior accuracy even when handling complex products. Its intelligent detection system identifies minute metal contaminants while minimizing false rejects, thereby maximizing production efficiency. Designed specifically for packaged foods, this digital conveyor food metal detector precisely detects ferrous, non-ferrous, and stainless steel contaminants before products reach the consumer. If you are interested in our products and services, please keep free to contact us for a quote.

Automatic metal detector for bagged food lines photos

Automatic Metal Detector for Bagged Food Lines Food Lines Digital Conveyor Metal Detector Automatic Metal Detector for Food

Detection window height: 120 mm (Standard sizes: 100/120/150/200 mm; other heights available upon request; sensitivity decreases as window height increases).

Detection window width: 300–500 mm.

Body material: All-stainless steel construction.

Sensitivity: Ferrous sphere φ0.8 mm–φ2.5 mm.

Non-ferrous metals (e.g., SUS304, copper, aluminum): ≥φ1.2 mm.

Power supply: 220V, 50Hz.

Power consumption: 120W.

Alarm method: Audible and visual alarm with automatic machine stop.

Dimensions (L × W × H mm): 1600 × 840 × 1005.

Weight: Approx. 250 kg.

Automatic Metal Detector for Bagged Food Lines Digital Conveyor Metal Detector

1. Utilizes dual-channel signal detection technology, offering exceptional sensitivity and product effect suppression capabilities for a wide range of applications. Features a dual-channel signal display; when a metal object passes through, indicator lights show varying signal intensities based on the size of the metal. Incorporates advanced industry technologies such as DDS frequency synthesis, DSP (Digital Signal Processing), and power amplification.
2. Designed with dual high-speed digital signal processors to ensure high detection accuracy and rapid processing speeds; includes a product effect adjustment function. Moist, sugary, or salty products can generate signals similar to those of metal, potentially interfering with detection; this function mitigates such product effects to ensure optimal detection performance.
3. Features a mechanical structure designed for easy disassembly, facilitating convenient cleaning and maintenance.
4. Suitable for integration into automated production lines.
5. Constructed with a fully welded, food-grade 304 stainless steel frame; offers options for high-specification motors and boasts a high IP69 protection rating, making it suitable for extremely harsh operating environments.
6. Alarm method: Buzzer alarm with automatic machine stoppage; optional rejection mechanism available.

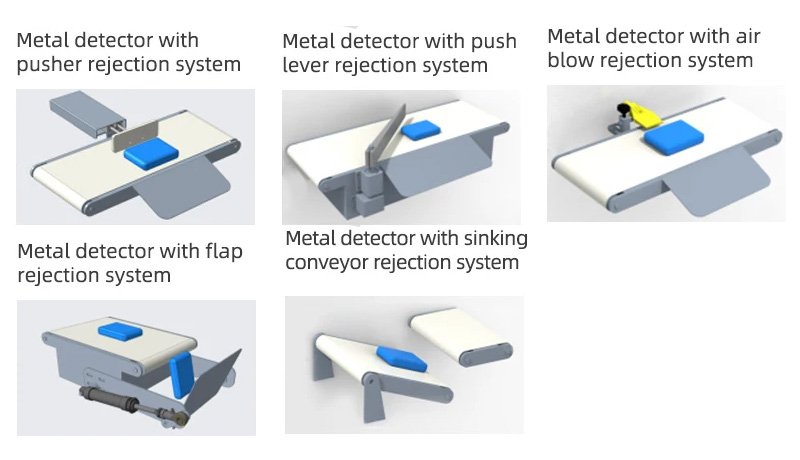

7. Multiple rejection methods available (e.g., pusher, flap, air blast) to ensure accurate and reliable removal of foreign objects while minimizing material waste.

Our technical experts will recommend the most suitable automatic metal detector for bagged food lines based on your specific requirements. Please feel free to contact us; our team is ready to provide professional guidance and support to ensure the solution aligns with your business needs.

Whether inspecting snacks, frozen foods, rice, coffee, nuts, pet food, spices, or ready-to-eat products, this automatic metal detector for food bags delivers exceptional sensitivity and reliable performance.

Automatic Metal Detector for Bagged Food Lines Digital Conveyor Metal Detector

1> Affix safety labels, tighten screws, clean, lubricate, and prevent rust;

2> Unpack into individual units;

3> Wrap tightly with plastic film;

4> Secure in plywood boxes;

5> Forklift into the container. Suitable for long-distance land and sea transport. For safe loading and unloading to the destination, we recommend full container load (FCL) shipping.

Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.

After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. One year warranty, lifetime repair

Automatic Metal Detector for Bagged Food Lines Digital Conveyor Metal Detector
