Product Details

Automatic Checkweigher and Rejection System for Liquid Cans Weight Checker

The automatic checkweigher and rejection system is equipped with advanced sensors and load cells and is equipped with an ultra-fast processor for superior accuracy and speed. The checkweigher system for liquid cans has an adjustable height, modular design, easy-to-use touch screen operating system, and removable straps that are easy to take apart for cleaning and installation. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

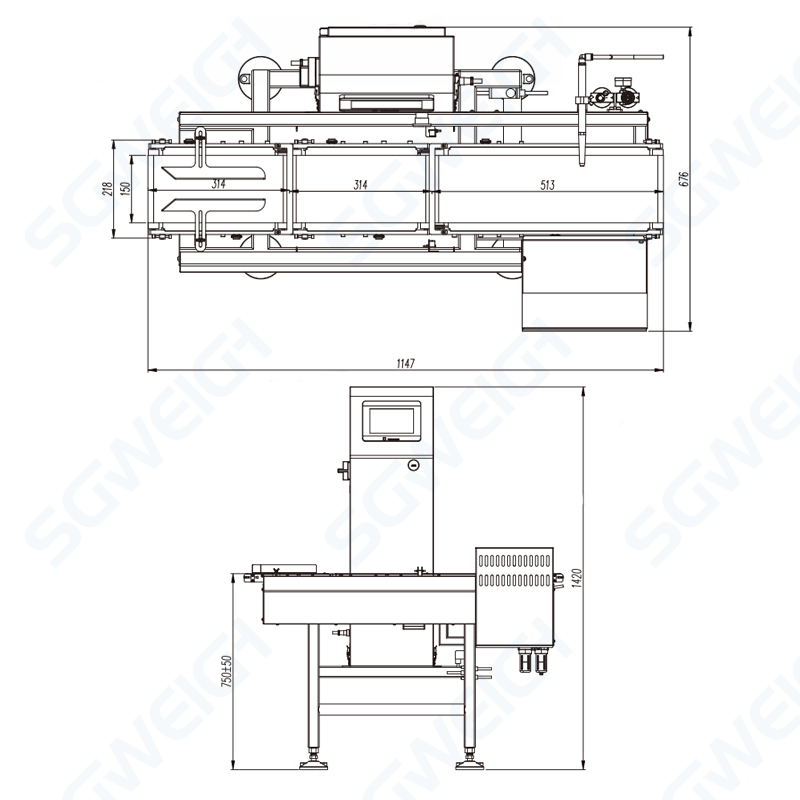

Automatic checkweigher and rejection system pictures

Type SG-150H

Weighing Range 3-500g

Limited of product L: 200 W:150 H: 3-200mm

Accuracy ±0.1g Depends on product

Division Scale 0.1g

Belt Speed 0- 90 m/min

Max Speed 250 pcs/min

Belt Width 150mm

Machine Weight 70kg

Power Supply AC 220V ±10% 50HZ

Power 100W

Main Material SU304 stainless steel

Our company's professional technicians will recommend the most appropriate checkweigher rejection type based on your specific needs. You can contact us at any time and our team will provide professional guidance and support to ensure your solution meets your business needs.

1. Super high adaptability to equipment environment.
2. Very friendly operation interface.
3. Parameters can be modified at any time without the need for the weight sorting machine to pause sorting.
4. Up to 200 product presets can store hundreds of thousands of data records to meet the complex needs of customers.
5. Rich peripheral resources, easy to interconnect with other devices.
6. Fast dynamic weighing algorithm software technology enables the entire system to maintain high detection accuracy even during high-speed operation.

Automatic checkweigher and rejection system is widely used in bagged products such as health products, bread, precious metals, instant noodles, chocolate, packaged foods, daily necessities, Chinese medicinal materials, chewing gum, etc. to automatically weigh and check on the assembly line, and to pick out products with unqualified weights.

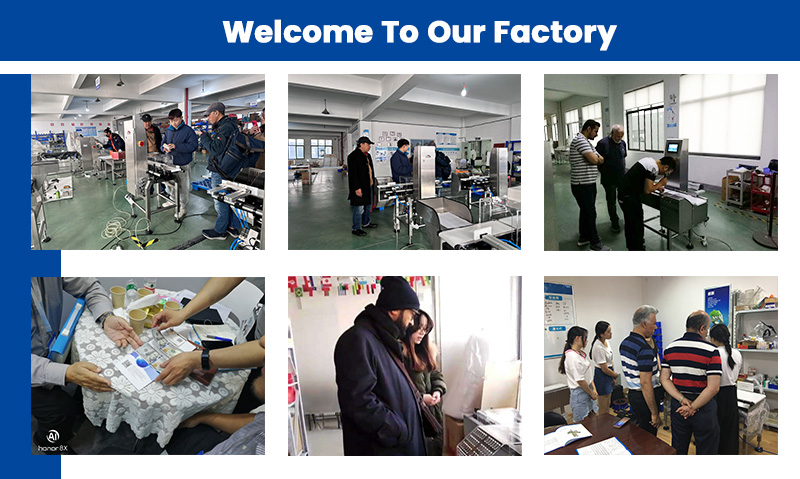

Shanghai Shigan Industrial Co., Ltd. is a modern enterprise located in Shanghai, China, which has been engaged in the mechanical design, R&D, manufacturing and sales of various checkweighers and metal detectors for more than 14 years. Designing first-class machines is our product positioning. We adhere to the marketing concept of "quality first, customer first" and the work philosophy of "integrity service, excellence". We also provide one-year warranty, durable maintenance, repair support, training, technical consultation, spare parts and material processing. Our machines are well-known at home and abroad, sold well in Asia, Southeast Asia, the Middle East, Europe, Africa, South America and other places, and have been highly praised by customers. Your satisfaction is our destination, and we eagerly hope to work and learn with you and become a strong support for your company.

1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.

Consultation and Assessment: Understand the customer's requirements, production processes and quality control objectives to determine the checkweigher solution that best suits their specific needs.

Product Demonstrations: Visually see the equipment in action and directly evaluate its performance.

Installation and Commissioning: After purchase, the checkweigher is installed and commissioned by trained technicians to ensure it operates correctly and is seamlessly integrated into the customer's production line.

Technical Support: Ongoing technical support is provided to resolve any questions, issues or maintenance needs that arise during checkweigher operation.

Warranty scope: 1 year warranty, lifetime maintenance.
We aim to provide customers with the right solutions, support and peace of mind throughout the lifecycle of their equipment, ensuring checkweighers meet their needs and provide long-term value.
