Automatic Capsule Metal Detection System Efficient Metal Detector for Production Lines

The automatic capsule metal detector employs cutting-edge electromagnetic detection technology to accurately identify even trace amounts of ferromagnetic, non-ferromagnetic, and stainless steel metals. Optimized detection coils and automatic calibration ensure maximum accuracy while minimizing false rejections. With customizable rejection mechanisms and intelligent data logging, this capsule metal detector for production lines can be seamlessly integrated into any production line. You are welcome to contact us at any time for quotation.

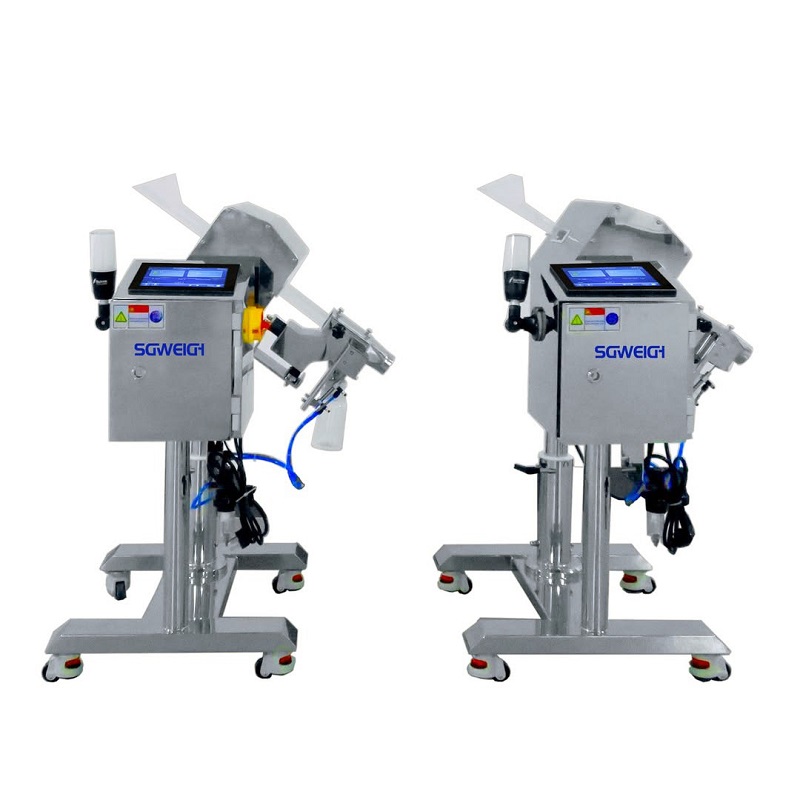

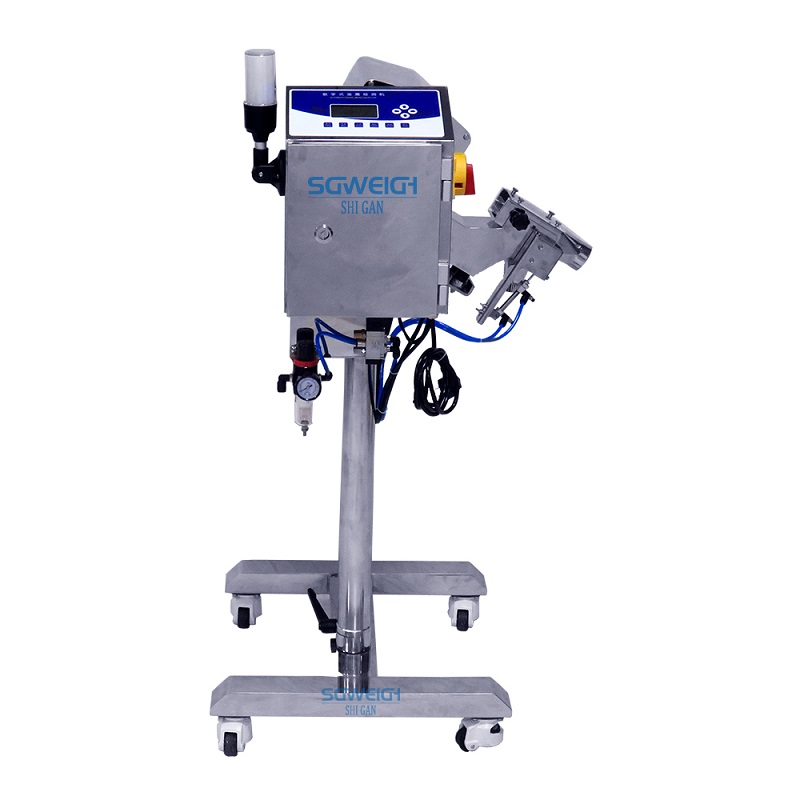

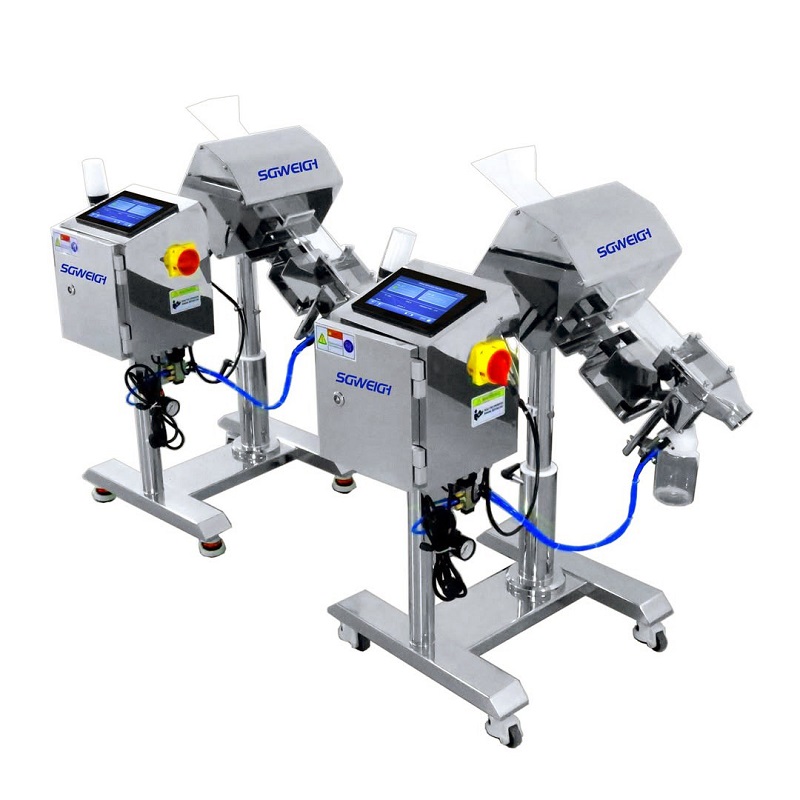

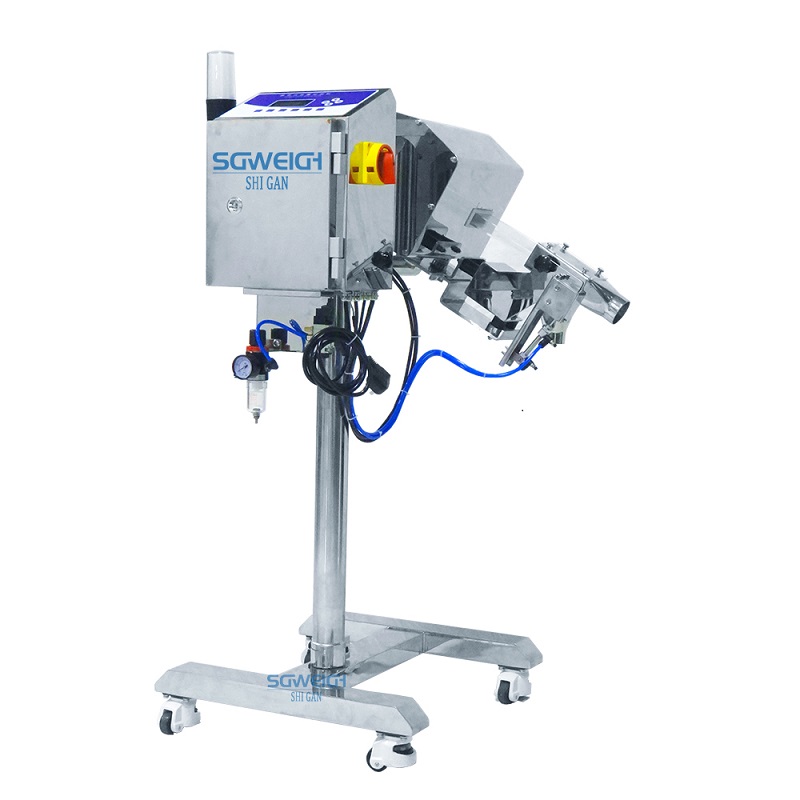

Automatic capsule metal detector photos

Model: SG-M70

Inlet Height: Height：770-930mm Port size：Φ76mm

Outlet Height: Height：700-860mm Port size：Φ51mm

Dimension: 750*550*950mm

Output Capacity(pcs/h): 500 000pcs/hour

Metal detector sensitivity in empty state: ΦFe≥0.3mm 、ΦSUS≥0.5mm

Weight: 65kg

Power supply: 220V/50Hz

Automatic Capsule Metal Detection System Efficient Metal Detector for Production Lines

1. This automatic capsule metal detector is used to detect metal impurities in tablets and capsules after the tableting and dust removal processes. It can detect all metal impurities, including ferrous metals (Fe), non-ferrous metals (copper, aluminum, etc.), and stainless steel.

2. LCD touchscreen control with a user-friendly interface supporting multiple languages.

3. Multiple detection frequencies are available, allowing different frequencies to be used depending on the desired product performance.

4. Automatic capsule metal detector has a self-learning function; the metal detector automatically collects product information and recommends appropriate detection parameters for each product.

5. Advanced DSP technology significantly improves detection performance. A leading genetic algorithm effectively suppresses product signals to achieve reliable sensitivity.

6. It can store approximately 100 product data points, suitable for production lines testing multiple products.

7. Equipped with an automatic tapping rejection system (controlled by a pneumatic solenoid valve), unqualified products are automatically rejected.

We accept various customizations and logos for all our automatic capsule metal detectors for our clients.

If you are interested, please contact us.

If you want to know more about related products, more surprises await you!

Ensure product integrity and patient safety with the Capsule Metal Detector, a high-performance solution engineered for pharmaceutical, nutraceutical, and food industries.

Automatic Capsule Metal Detection System Efficient Metal Detector for Production Lines

The outer plywood crate is made of high-quality wood, sturdy and durable with excellent load-bearing capacity. The interior is lined with plastic film to effectively protect goods from salt, wind, or damage. Furthermore, the plastic film provides excellent sealing, ensuring the safety of the goods. The crate has a simple design, is easy to open, and facilitates loading and unloading.

12 Months Guarantee

★ 12 months free main parts change (Please return the damaged parts by airmail)

★ Overseas engineers available (You only have to pay part of the freight)

Customization

All our machines can be customized , according to your product's features and your workshop environment, or your production line.

After-sales Service Provided

one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be replaced free of charge; outside the warranty period, accessories will be provided at cost price.
